path-to-shape: the hidden son of Gfig and shape-paths

ofnuts · **Joined:** Oct 25, 2010 **Posts:** 4739

I don't like GFig (it cannot create paths...) so I use shape-paths, but I don't like entering all that data by hand. It's much easier and faster to indicate where your shape should go with points on your image, so to answer this I wrote here path-to-shape. You can draw:

a circle given a center and a point on the circle (if more points: more concentric circles)
a circle given two points on a diameter (if more points: more circles with a common point)
a regular polygon given a center and a vertex (the line between them is a "circumradius"), the additional points on the stroke tell how many sides/vertices you want.
a regular polygon given a center and the middle of a side (the line between them is an "apothem"), the additional points on the stroke tell how many sides/vertices you want.
a regular polygon given the two ends of a side, the additional points indicating the number of sides, the third point hinting on which side is the polygon.

Pictures being worth a thousand words:

Attachment:

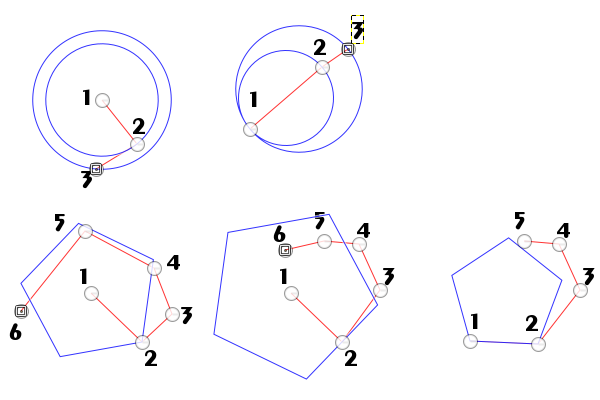

path-to-shapes-cheatsheet.png [ 40.45 KiB | Viewed 6459 times ]

Warnings:

Barely debugged. If you aren't too familiar with paths, don't bother for the time being
Still some very rough edges, no decent checks of your input
Still some questions:
- Should the result path be made visible or not?
- Should the source path be made invisible or even deleted or not?
- Are there other common shapes amenable to this kind of input (I have a "star" in the works)

Once installed, the script is available in the right-click menu of the Path list, under a "Shapes" menu. There are no parameters, so that each way to enter a shape can be assigned a keyboard shortcut.

Available at the usual place.

Enjoy

AnMal · **Posted:** Wed Feb 12, 2014 7:02 pm **(#2)**

ofnuts:

you rock!!!! you're a real path script wizard, thank you for sharing your magic here

!

ofnuts · **Joined:** Oct 25, 2010 **Posts:** 4739

This one is a lot more about trigonometry than about Gimp

Now where did I keep the aspirin

K1TesseraEna · **Joined:** Sep 22, 2012 **Posts:** 2089 **Location:** US

the more I play with your script the more I'm convinced in its usefulness

the field of application may vary but the first thing that comes to mind is creating design for infographics*

ofnuts wrote:

[*]Still some questions:

Should the result path be made visible or not? Yes
Should the source path be made invisible or even deleted or not? Visible, don't delete - may need to edit
Are there other common shapes amenable to this kind of input (I have a "star" in the works)

[/list]

* therefore, I'd suggest to add two more functions to your script

Your thoughts?

ofnuts · **Joined:** Oct 25, 2010 **Posts:** 4739

Circumcircle is already on my mind (only for a triangle, but the circumcircle for the other ones, when it exists, is the circumcircle obtained with any of 3 vertices). On the other hand the script uses the usual approximation of a circle by a Bézier spline, so there are only 8 points that are really on the circle (every 45°) which means that if I can compute the circle, the curve that will implement it will not, in the general case, go exactly through all three points.

Then this script is more about replacing a clumsy dialog input by a set of points than about computing lines. Computing the common tangent to two random Bézier curves is beyond my abilities, and if I may be able to compute the common tangent between two circles given by two points each, this will be the tangent to the theoretical circles and not to their Bézier approximation. Doing the real tangent by hand will be more efficient.

K1TesseraEna · **Joined:** Sep 22, 2012 **Posts:** 2089 **Location:** US

ofnuts wrote:

the circumcircle for the other ones, when it exists, is the circumcircle obtained with any of 3 vertices). On the other hand the script uses the usual approximation of a circle by a Bézier spline, so there are only 8 points that are really on the circle (every 45°) which means that if I can compute the circle, the curve that will implement it will not, in the general case, go exactly through all three points.

You're right, there is even a tool in Illustrator - to create a circle by 2 or 3 points, two is the minimum required, three is more than enough for
equilateral polygons, but this is a tool that you drag on canvas and see the outlines immediately. My second example under circumcircle is a perfect square, which is much easier to draw in gimp than equilateral triangle (rectangular select tool> to path).

ofnuts wrote:

Then this script is more about replacing a clumsy dialog input by a set of points than about computing lines. Computing the common tangent to two random Bézier curves is beyond my abilities, and if I may be able to compute the common tangent between two circles given by two points each, this will be the tangent to the theoretical circles and not to their Bézier approximation. Doing the real tangent by hand will be more efficient.

Yeah, I suspected that might be too difficult. Well, whoever wants an insane precision can always use the CAD tools :hehe

ofnuts · **Joined:** Oct 25, 2010 **Posts:** 4739

Hardened the code and added a couple of things. See version 0.1.

The new cheatsheet:

Attachment:

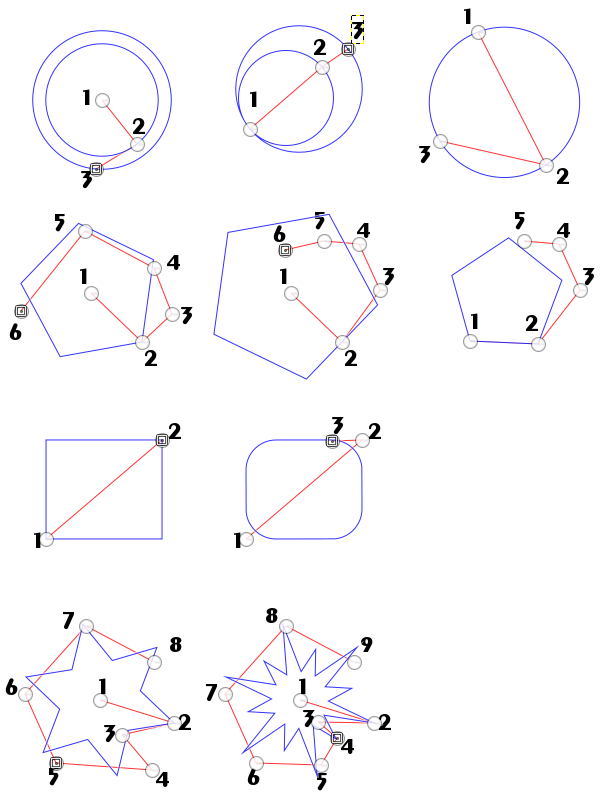

path-to-shapes-cheatsheet.png [ 79.36 KiB | Viewed 6222 times ]

Rod · **Joined:** May 16, 2010 **Posts:** 14709 **Location:** USA

Nice Ofnuts. And thanks for the cheat sheet.

ofnuts · **Joined:** Oct 25, 2010 **Posts:** 4739

@K1TesseraEna: eventually computing tangents isn't that hard. I have cornered the tangents from a point, tangents between circles come next. These lines are indeed useful to create nice and clean figures:

Attachment:

TangentsFromPoint.png [ 10.33 KiB | Viewed 6156 times ]

Question about the interface:

1) There are many tangents: from a point you have two (unless the point is in the circle), between two circles there are four in the general case (two if they intersect, none if one is included in the other). So, would it be useful to distinguish the tangents by producing them on distinct paths, those unneeded being more easily ignored/erased than if they were strokes in the same path?

2) Unlike the other shapes, that use paths completely created for that purpose, tangents apply to pre-existing paths so circles and points will usually be in different paths. So how is the second path specified? In a usual dialog or more implicitly (linked or visible path)?

josephbupe · **Posted:** Mon Feb 17, 2014 3:44 pm **(#10)**

Please, where do I save the .py file and can I access the path-shape from Gimp?

Nidhogg · **Posted:** Mon Feb 17, 2014 4:17 pm **(#11)**

josephbupe wrote:

Please, where do I save the .py file and can I access the path-shape from Gimp?

You put it in /User/.gimp-2.8/plug-ins/ folder
It is under Filters?/Vectors/Shapes. I always edit the menu entries of scripts and plugins with notepad++

You can also find every plugin and script from Help/Plug-in browser.

josephbupe · **Posted:** Mon Feb 17, 2014 4:21 pm **(#12)**

Quote:

You put it in /User/.gimp-2.8/plug-ins/ folder

Thanx I will try again.

Quote:

You can also find every plugin and script from Help/Plug-in browser.

Oh! can I launch plug-ins from within the plug-in-browser too?

ofnuts · **Joined:** Oct 25, 2010 **Posts:** 4739

josephbupe wrote:

Please, where do I save the .py file and can I access the path-shape from Gimp?

Like most of my paths related scripts, it is accessed via the right-click pop-up menu in the Path list. It should better stay there because that way it can be applied to any path without making this path the active one.

josephbupe · **Posted:** Tue Feb 18, 2014 12:52 am **(#14)**

Thank you ofnuts.

K1TesseraEna · **Joined:** Sep 22, 2012 **Posts:** 2089 **Location:** US

ofnuts wrote:

@K1TesseraEna: eventually computing tangents isn't that hard. I have cornered the tangents from a point, tangents between circles come next. These lines are indeed useful to create nice and clean figures:

Question about the interface:

1) There are many tangents: from a point you have two (unless the point is in the circle), between two circles there are four in the general case (two if they intersect, none if one is included in the other). So, would it be useful to distinguish the tangents by producing them on distinct paths, those unneeded being more easily ignored/erased than if they were strokes in the same path?

2) Unlike the other shapes, that use paths completely created for that purpose, tangents apply to pre-existing paths so circles and points will usually be in different paths. So how is the second path specified? In a usual dialog or more implicitly (linked or visible path)?

Considering the peculiarities of how paths in gimp are handled [we can 'group' separate paths by merging them but there's no way to ungroup or select elements of a complex path, other than copy/paste and delete duplicate shapes anchor by anchor], I think it would be more useful to create all possible tangents for any given number of curves and points (if any) in visible paths, with each tangent as an individual path. The redundant paths could be deleted/made_invisible, the necessary ones could be transform-locked or merged [as in Merge_Visible] - if there is a need to isolate or treat them as a single object [using Inkscape, Illustrator terminology].
BTW, I'd suggest to do the same for the current circles creation in your script, each circle as a separate path.

If there are no common tangents between any given curves or curve/point pair [e.g. encircled curve/point, two parallel arcs, etc.], then the script should issue a warning/error_message - 'no common tangents were found' or something like that.

I like new additions especially a rectangle with rounded corners :bigthup

ofnuts · **Joined:** Oct 25, 2010 **Posts:** 4739

K1TesseraEna wrote:

there's no way to ungroup or select elements of a complex path, other than copy/paste and delete duplicate paths anchor by anchor

Welcome to delete-strokes.py, one of the oldest scripts in my collection and its not so young kid brother decompose-strokes.py

K1TesseraEna · **Joined:** Sep 22, 2012 **Posts:** 2089 **Location:** US

ofnuts wrote:

K1TesseraEna wrote:

there's no way to ungroup or select elements of a complex path, other than copy/paste and delete duplicate paths anchor by anchor

Welcome to delete-strokes.py, one of the oldest scripts in my collection and its not so young kid brother decompose-strokes.py

these are useful scripts Ofnuts, I just wonder how come these simple operations are still not the build-in features of the gimp path tool? :roll:

ofnuts · **Joined:** Oct 25, 2010 **Posts:** 4739

Well, as someone puts it, I'm making Gimp look like Inkscape, one script at a time

In other words, those who use paths that much should look at Inkscape. One of these days I will

K1TesseraEna · **Joined:** Sep 22, 2012 **Posts:** 2089 **Location:** US

ofnuts wrote:

Well, as someone puts it, I'm making Gimp look like Inkscape, one script at a time

In other words, those who use paths that much should look at Inkscape. One of these days I will

well....Inkscape thinks differently, and gimp's path tool will never look alike.
I did say here a long time ago that if people like you, with EO paths expertise, turned to Inkscape it would have been a much better tool because, frankly, it has a lot of room for improvement. I do all my vectors in Illustrator. It is superior to CorelDraw and IS, hands down. If you can write in javascript, Ai is a fruitful soil for scripting.

ofnuts · **Joined:** Oct 25, 2010 **Posts:** 4739

OK, new version with the tangents at the usual place:

Attachment:

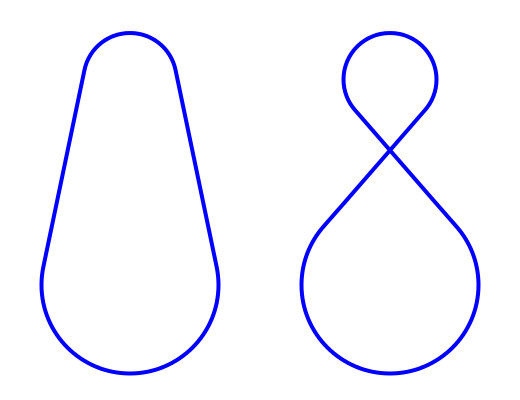

InnerOuterTangents.png [ 17.46 KiB | Viewed 1810 times ]

Both tangent entries assume that the first stroke on the target path can be see as a circle: 2 point is a circle by center and radius, 3 points or more is a circumcircle (this case also covers circles produced by the circle entries...).

Then either:

- there is another path "linked": each stroke it contains is used to determine tangents. For the point to circle, every point in the stroke(s) is used to compute a pair of tangents, for the circle to circle, each stroke is interpreted as a circle depending on number of points, as above.

- there is no linked path: the script uses other strokes in the same path (but nothing in Gimp guarantees that the order of strokes is preserved, so getting the circle in 1st position may be difficult.

The output is two (point to circle) or four (circle to circle) paths, where the strokes are grouped by type/side. inner/outer and left/right.

Enjoy
